Basic Specification
| Fire Resistance Alarm Cable |
Red, Red |
Detail Description

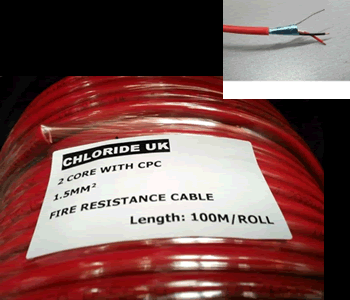

FIRE RESISTANCE CABLE (For European Standard)
PVC Insulation, Multicores, Layers, Collective Screen
Part No. |
Specification |
Conductor Resistance
Ohm/km |
Test Volt.
V c.c. |
Operating Volt.
V |
Temperature
Range ℃ |
O900509 |
2×0.50 |
39 |
2500 |
250 |
-10 / +80 |
O900609 |
2×0.75 |
26 |
2500 |
250 |
-10 / +80 |
O900709 |
2×1.00 |
19.5 |
2500 |
250 |
-10 / +80 |
O900809 |
2×1.50 |
13.3 |
2500 |
250 |
-10 / +80 |
O900909 |
2×2.50 |
7.98 |
2500 |
250 |
-10 / +80 |
|
Application:
Communication and signaling in Fire alarm systems
Conductor:
Stranded or Solid Pure 100% Red Copper
Insulation:
Polyvinylchloride rated
Shield:
Collective Screen of Aluminum/Polyester Foil
BC or TC Drain Wire wrapped by Polyester Tapes
Sheath:
Flame retardant polyvinylchloride
(RED Colour) or any other colors
Temperature range:
In motion -10℃ till +80℃
Standard Packing:
Coils 100M or 500M
|
