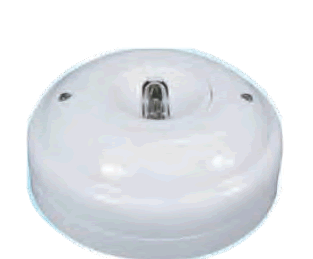

AH718 Series
Flame Detector
The Chloride UK AH-718 series detectors provide fast and reliable response for visible flame and fire detection. They are intended for use in 2-wire/4-wire Class A2 supervised zone circuits. The AH-718 series detectors are subject to panel compatibility limits and compliance with corresponding NFPA 72E standards, local codes, and ordinances.
Product Features:
• 2 or 4 wire models
• Advanced detection and discrimination algorithms
• Easy installation and maintenance
• Sleek low-profile housing design
• Quick Detection of Flame from Distance
• High Sensitivity and Wide Directivity
• SMD circuit board design-satisfactory quality and reliability guaranteed
• N/C (normal/close)-N/O (normal/open)selectable relay output or remote LED indication output

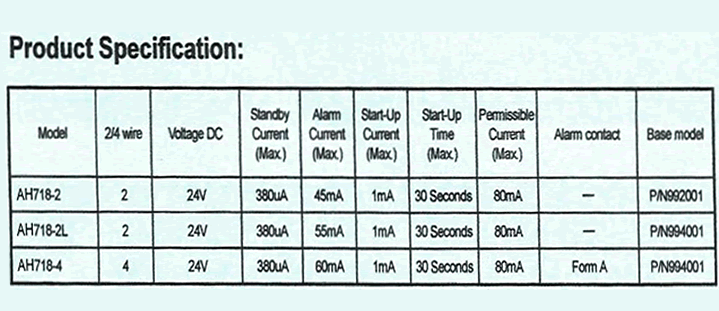

The range includes:
AH 718-2 2-wire Flame Alarm
AH 718-2L 2-wireFlame Alarm with Remote LED Output
AH 718-4 4-wire Flame Alarm with Relay Output
Spectral Response: 185 to 260 nm
Effective Range: 10m
Alarm Indicator: LED continuously emitting red light
Remote Output: Remoto LED
Temperature Range: 0°C to 50°C
Permissible Current: 80mA maximum
Humidity: 0 to 95% RH, no condensation or icing
Alarm Contact: (for 4-wire) NO or NC Operation, Form A: 2.0A@30VDC/0.5A@125VAC
Dimensions: 102mm (dia) x 40mm (ht) with base
Weight: 130g with bas
|
