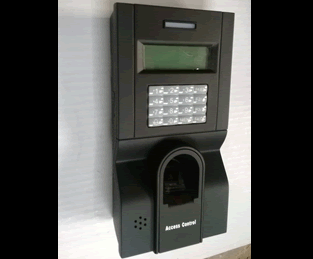

CP-F8-ID  Access Controller

Product Introduction
CP-F8 is a widely used Access Control in the office. Choosing a lot of stable original parts, strictly follow the national
security product standard. CP-F8 is suitable for the entrances and exits of office, factory, hotel, school, etc. All
input/output are using anti-jamming protection and over-voltage/circuit protection. The product experiences the
strict degradation test before leaving factory. The greatest advantage of F8 is easy to install, with multifunctional &
elegant design and reasonable price.

Features
· One fingerprint develop the whole world
· Adopt high reliable industrial component parts and optical sensor, watchdog monitor to avoid unit hang ,unique
reset key keeps the unit well work
· Easy to install all the cable connection EM lock installation are the same to the traditional IC/ID Access control
· One-way alarm output: dismantlement alarm, threatens alarm, unlock illegally alarm, not block alarm

TechnicalSpecifications
· Hardware platform: ZEM500
· Operating system: Linux
· User capacity: 1500; Transaction capacity: 50000
· Sensor: ZK Sensor
· Algorithm version: 2007 Version ZK new algorithm
· Access Control: 50 Time Zone, 5 Grouping, 10 Combination, Holiday Management, support many
fingerprints access, support standalone work
· Communicational: TCP/IP or RS232 and RS485
· Keyboard and Display: LCD with 80 character and figure keypad
· Power: 12V
· Identification speed:≤2 seconds
· FRR: ≤1%; FAR: ≤0.0001%
· Temperature operating: 0°C - 45°C
· Humidity operating: 20%-80%
· Language: simplified Chinese, traditional Chinese, English, other Languages
· Standard: Wire Doorbell, Wiegand OUT,Wiegand IN
· Optional: ID/HID/Mifare card, Webserver, USB host, Short message, Workcode, RIS, Antipass-back
· Optional: Webserver, Workcode, RIS,Multi-identification, 9 Digits User ID, Schedule Status, T&A Records.
